ANNKE FCD800 8MP Panoramic Dual Lens Outdoor PoE Security Camera
ANNKE FCD800 8MP Panoramic Dual Lens Outdoor PoE Security Camera
Couldn't load pickup availability

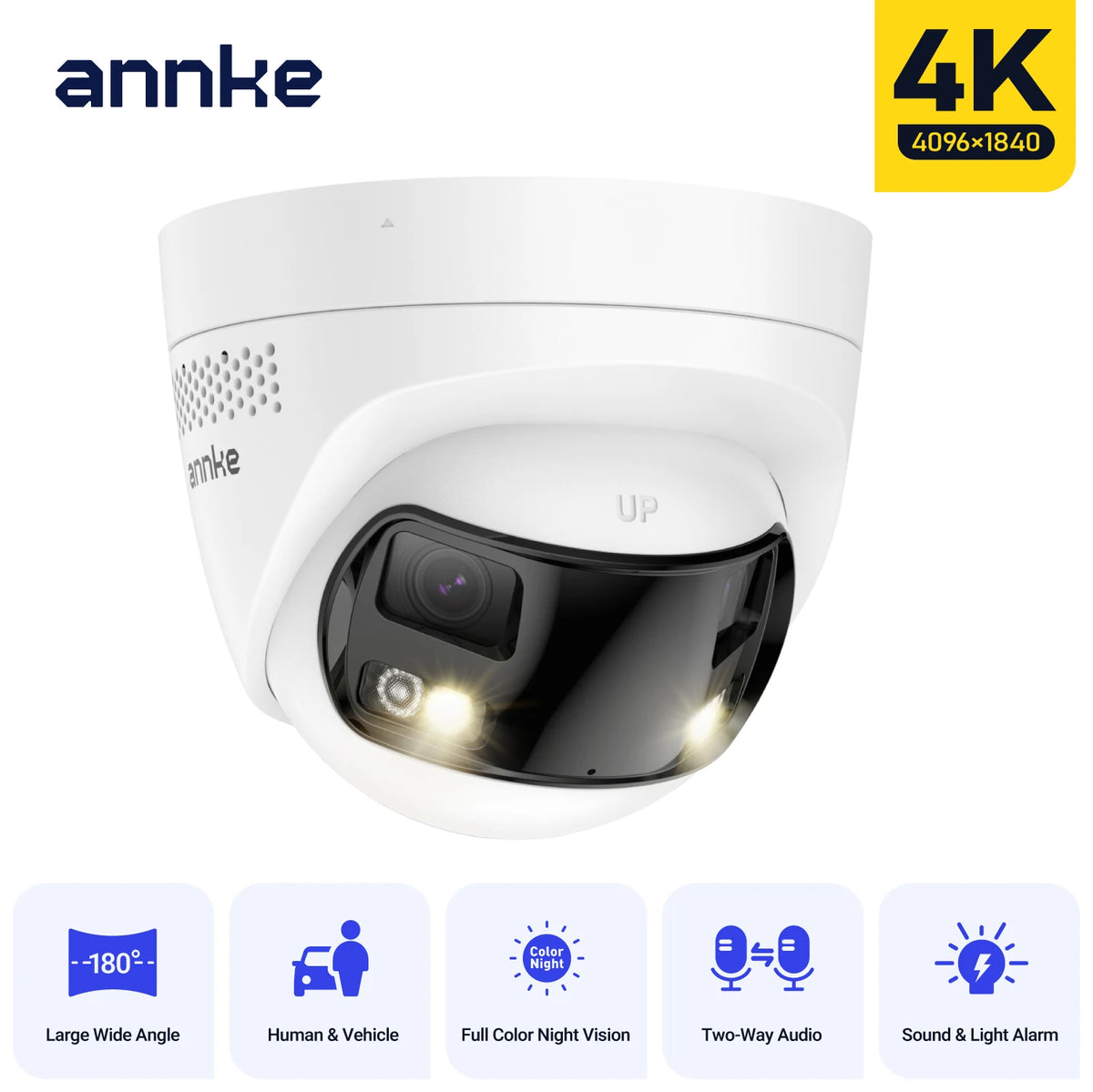

See more of your property at a glance with an 8MP panoramic camera that brings a 180° view into one wide image.
- Wide, detailed coverage: Dual lenses capture 4096 × 1860 resolution at 20 fps, helping you monitor broad outdoor areas with fewer blind spots.
- Smarter alerts: Human and vehicle detection sends real-time notifications, while adjustable zones and line detection help focus alerts on the areas you choose.
- Day-and-night visibility: Choose white light, infrared, or Smart Dual-Light with illumination up to 30 m; 120 dB WDR helps balance bright backlight.

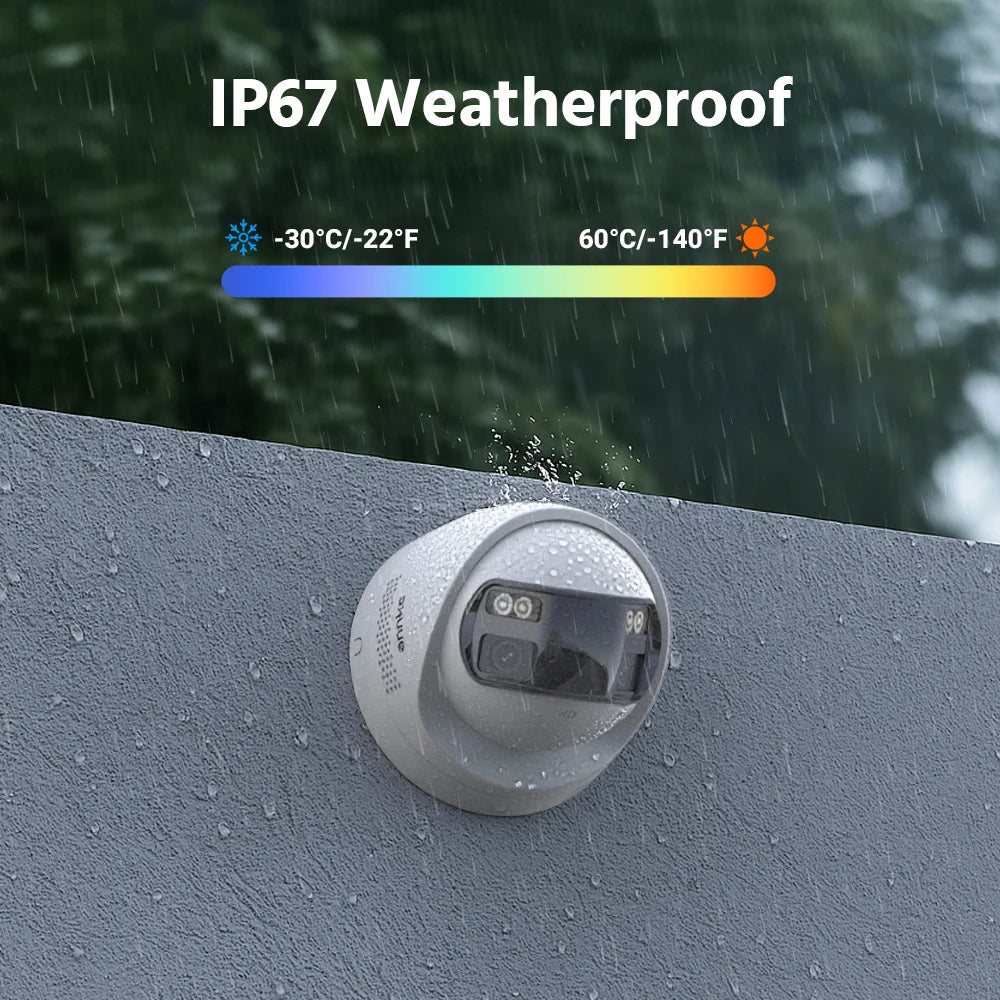

- Two-way security: Use the built-in microphone, speaker, siren, and flashing light to respond remotely; IP67 protection suits indoor or outdoor use, and PoE or 12 V DC powers the camera.

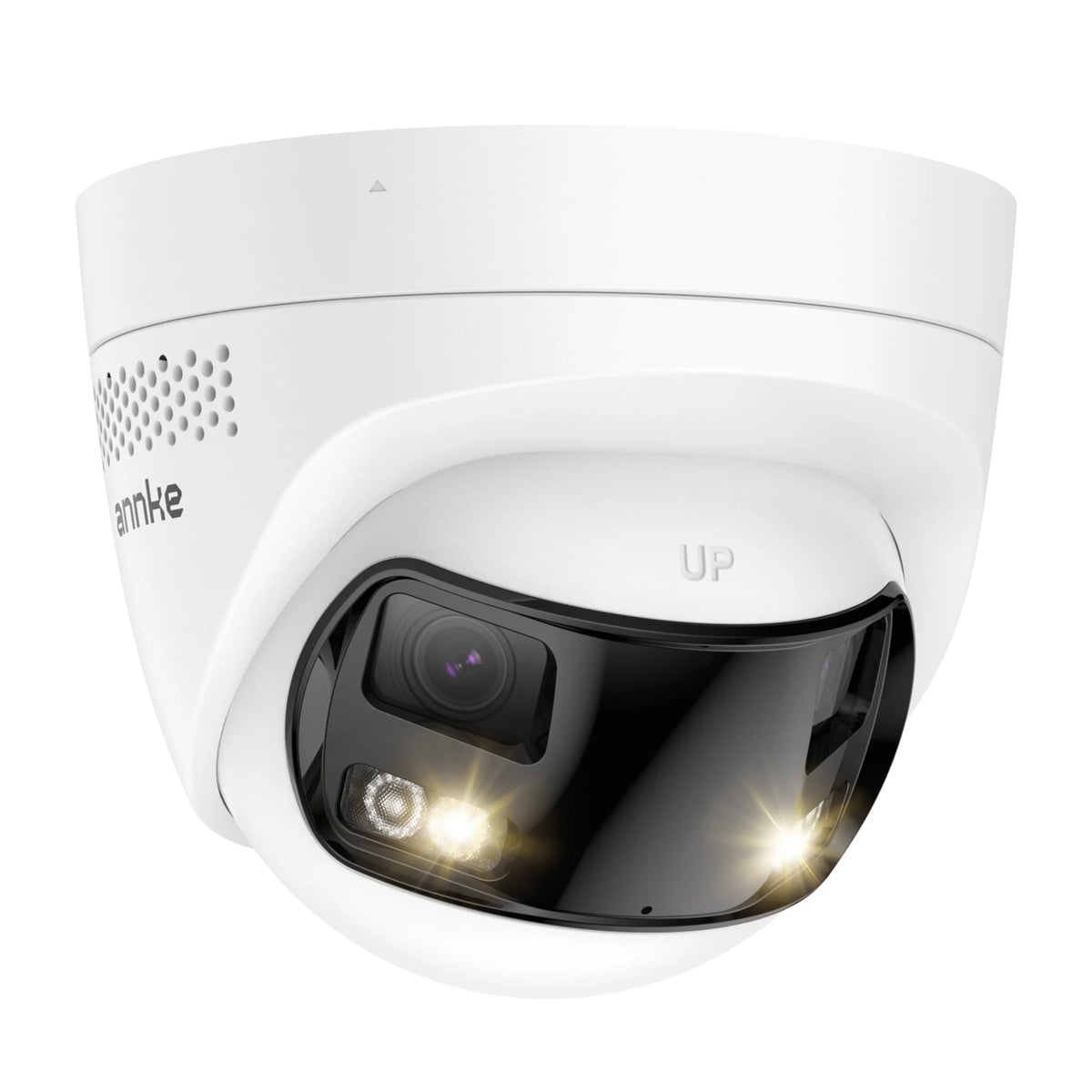

Model Number |
I91ET |
|
IP Camera | ||
Camera |
Image sensor |
2×1/2.4" Progressive Scan CMOS |
Max resolution |
4096 x 1860 |
|
Main Stream |
50 Hz: 20 fps (4096 x 1860) |
|
Sub Stream |
50 Hz：20 fps（1200 × 536, 960 × 432） |
|
Video compression |
Main Stream: H.265+/H.265/H.264+/H.264 |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
Built-in Microphone |
Built-in Microphone, record with audio |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Built-in Speaker |
Yes, max. sound pressure: 10 cm: 97 dB |
|
Lens |
Dual lens: 2 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON) |
|
Angle of View |
Horizontal FOV: 180°, Vertical FOV: 77° |
|
Supplement Light Type |
Smart light, white light, IR light |
|
Supplement Light Range |
White light up to 30 m, IR light up to 30m |
|
Motion detection 2.0 |
Supoort, include human & vehicle detection |
|
Image Parameters Switch |
Yes |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120dB WDR |
|
Network Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP |
|
API |
Support Open Network Video Interface protocol, version 19.12 |
|
Basic Event |
Motion detection (support human and vehicle detection), video tampering, exception detection |
|
Audio Alarm |
Support(Parameters adjustable,support custom audio, can be triggered from APP) |
|
Flashing Alarm |
White light, frequency adjustable, can be triggered from APP |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate, remote access, IP Address Filter |
|
General |
Housing |
Metal&Plastic, white color |
Operating Power |
PoE (802.3af)，max 11.5W, |
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
Storage |
Built-in micro SD/SDHC/SDXC slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Temperature |
-22 °F – 140 °F /-30 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L x W x H) |
Ø 130.1 mm × 109.1 mm (Ø 5.1" × 4.3") |
|
Weight |
Approx. 586 g (1.3 lb.) |
|

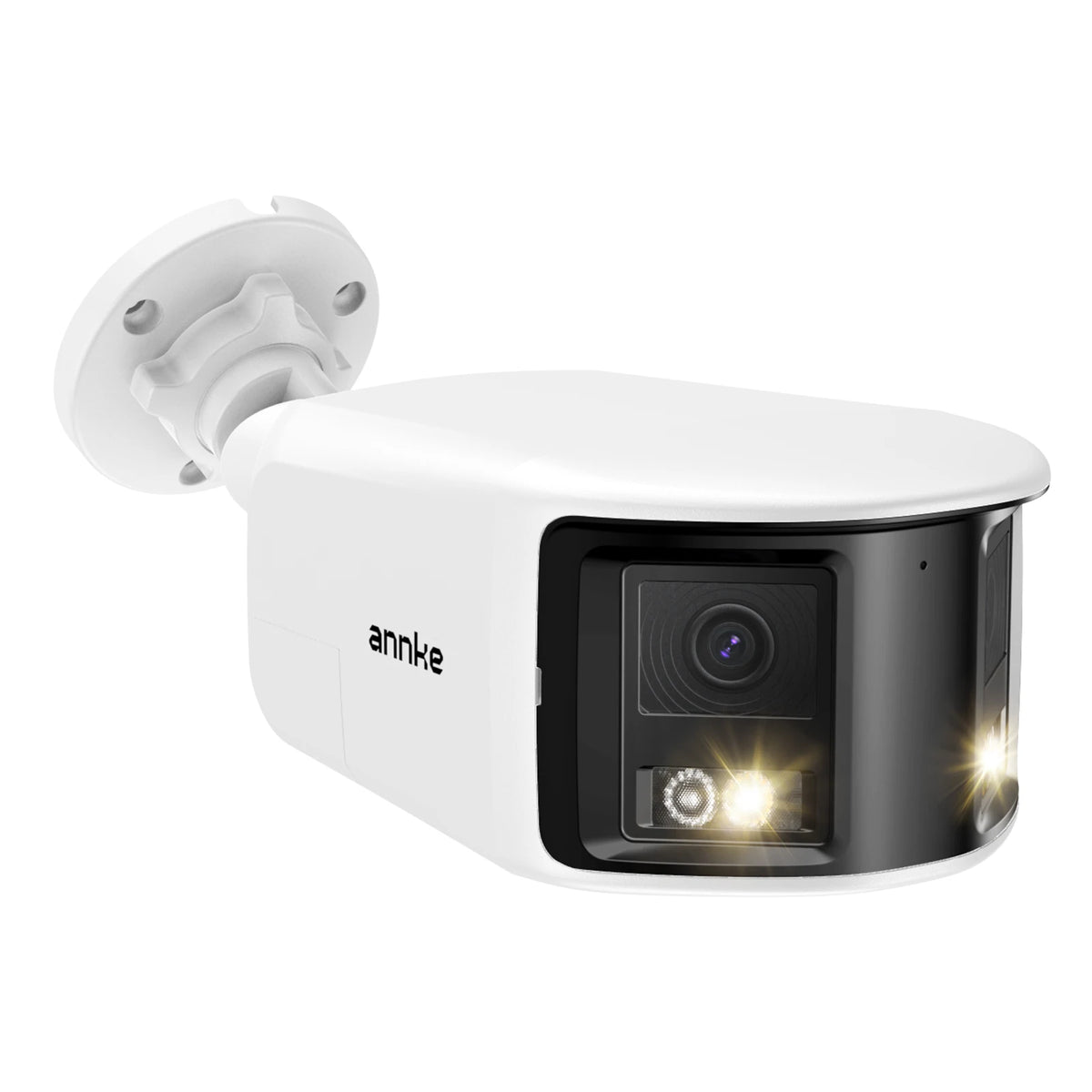

Model Number |
I91EV |
|
IP Camera | ||
Camera |
Image sensor |
2×1/2.4" Progressive Scan CMOS |
Max resolution |
4096 x 1860 |
|
Main Stream |
50 Hz: 20 fps (4096 x 1860) |
|
Sub Stream |
50 Hz：20 fps（1200 × 536, 960 × 432） |
|
Video compression |
Main Stream: H.265+/H.265/H.264+/H.264 |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
Built-in Microphone |
Built-in Microphone, record with audio |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
|
Built-in Speaker |
Yes, max. sound pressure: 10 cm: 97 dB |
|
Lens |
Dual lens: 2 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON) |
|
Angle of View |
Horizontal FOV: 180°, Vertical FOV: 77° |
|
Supplement Light Type |
Smart light, white light, IR light |
|
Supplement Light Range |
White light up to 30 m, IR light up to 30m |
|
Motion detection 2.0 |
Supoort, include human & vehicle detection |
|
Image Parameters Switch |
Yes |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120dB WDR |
|
Network Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP |
|
API |
Support Open Network Video Interface protocol, version 19.12 |
|
Basic Event |
Motion detection (support human and vehicle detection), video tampering, exception detection |
|
Audio Alarm |
Support(Parameters adjustable,support custom audio, can be triggered from APP) |
|
Flashing Alarm |
White light, frequency adjustable, can be triggered from APP |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate, remote access, IP Address Filter |
|
General |
Housing |
Metal&Plastic, white color |
Operating Power |
PoE (802.3af)，max 11.5W, |
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
Storage |
Built-in micro SD/SDHC/SDXC slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Temperature |
-22 °F – 140 °F /-30 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L x W x H) |
103.6 mm × 76 mm × 234.5 mm (4.1" × 3.0" × 9.2") |
|
Weight |
Approx. 560 g (1.2 lb.) |
|
